Oregon OSHA's Fall distance educator

Scenario 1 (continued)

Yes, he will be safe

  • Free fall distance is 1 foot. (Oregon OSHA requires free falls to be 6 feet or less). He ended more than 3 feet from the ground.
  • He did not hit the ground.

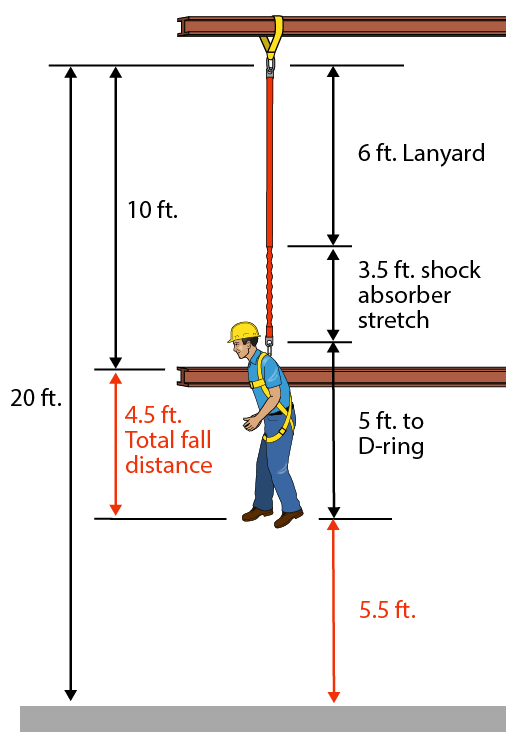

Here is how to calculate total fall distance and free fall distance.

Lanyard length:6.0 ft.
Shock absorber deceleration distance:3.5 ft.
Height to back D-ring:+ 5.0 ft.
Necessary clearance:14.5 ft.
Connection height:– 10.0 ft.
Total Fall distance:4.5 ft.
Shock absorber deceleration distance:– 3.5 ft.
Free fall distance:1.0 ft.
motion graphic of a man in a safety harness falling
